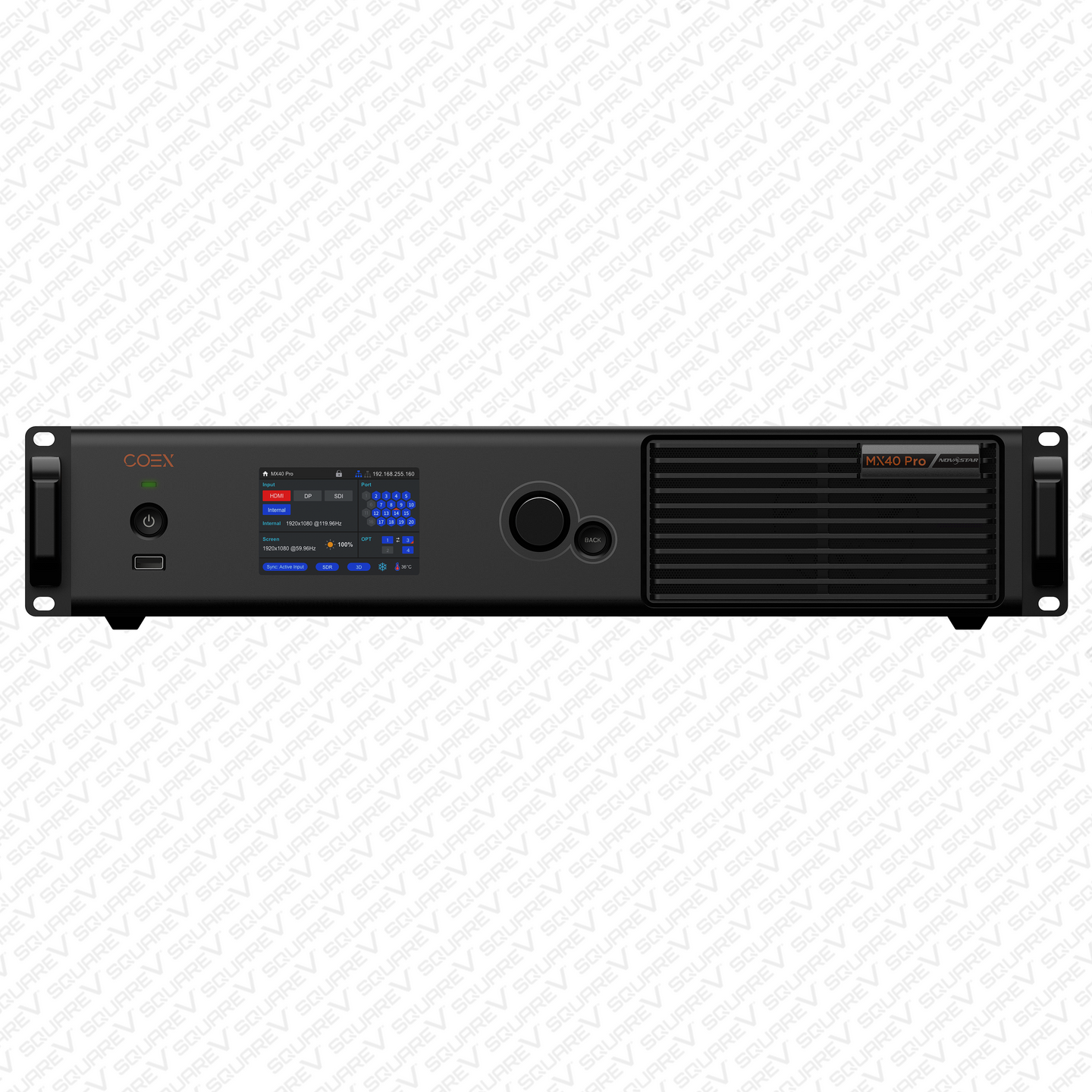

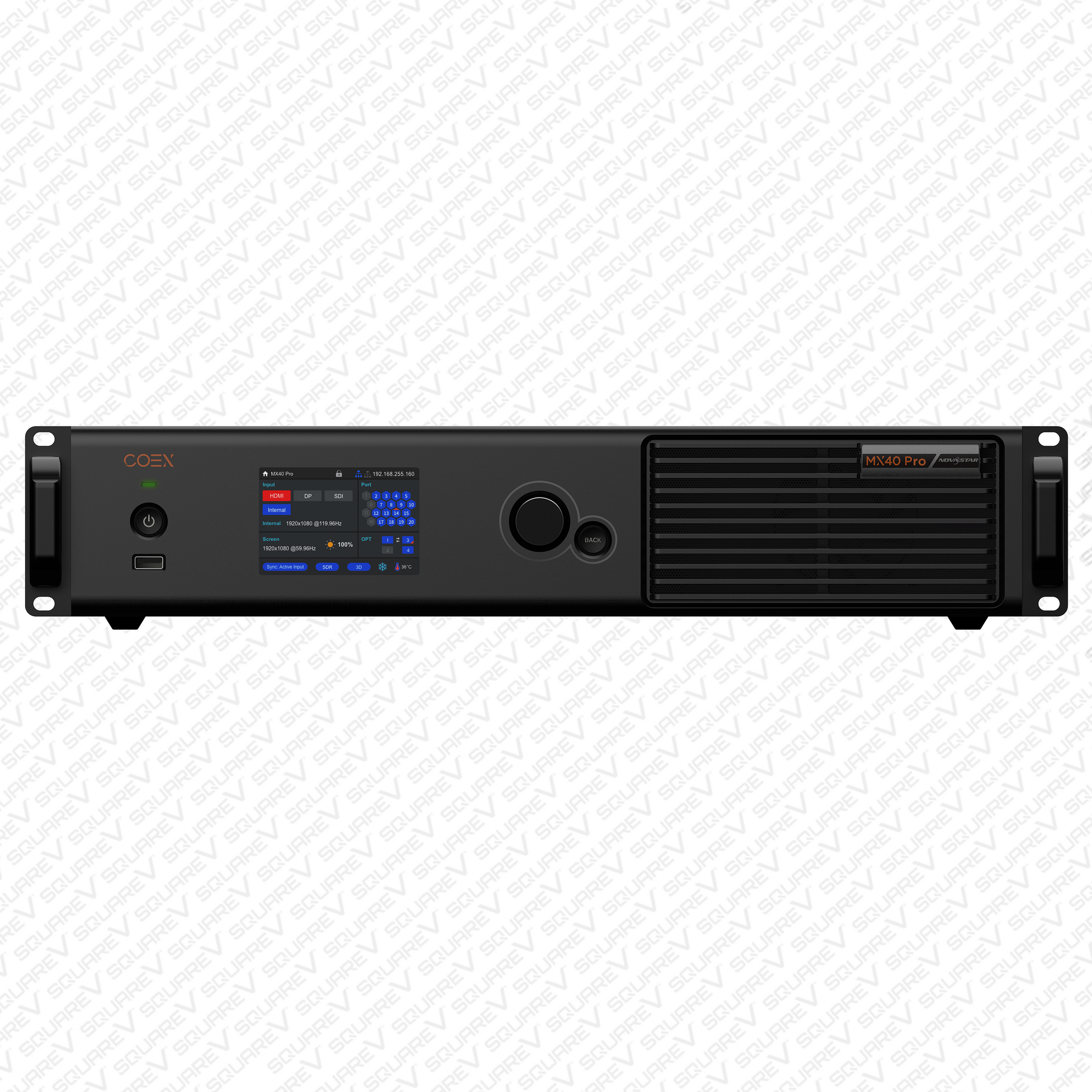

NovaStar’s flagship 4K LED display controller, the MX40 Pro, offers rich video input connectors (HDMI 2.0, DP 1.2 and 12G-SDI) and 20 Ethernet output ports. It works with the brand-new VMP screen configuration software to provide users with many new, robust features including Image Booster 2.0, dynamic booster, full grayscale calibration, color adjustment, quick and easy screen mapping, and much more.
The MX40 PRO includes features such as:
Genlock, XR function, Dynamic booster, Full gray-scale calibration, HDR function, LED image booster, Low latency, Pixel level brightness and chroma calibration, Individual gamma adjustment, etc., No Rectangular Restriction when mapping (unused panels do not count toward the total capacity on the data port)
**Function Limitations
-
The Frame Rate Adaptive function only works with the A10s Pro receiving card. Currently supported driver ICs include MBI5264, MBI5253B, ICND2055, ICND2065, ICND2059 and ICND2069. In addition, the .ncp file generated by the Cabinet Tool from NovaStar must be used.
-
The Full Grayscale Calibration function only works with the A10s Pro receiving card.
- The Dynamic Booster function only works with the A10s Pro receiving card.
-
Low latency not available when Genlock is used.

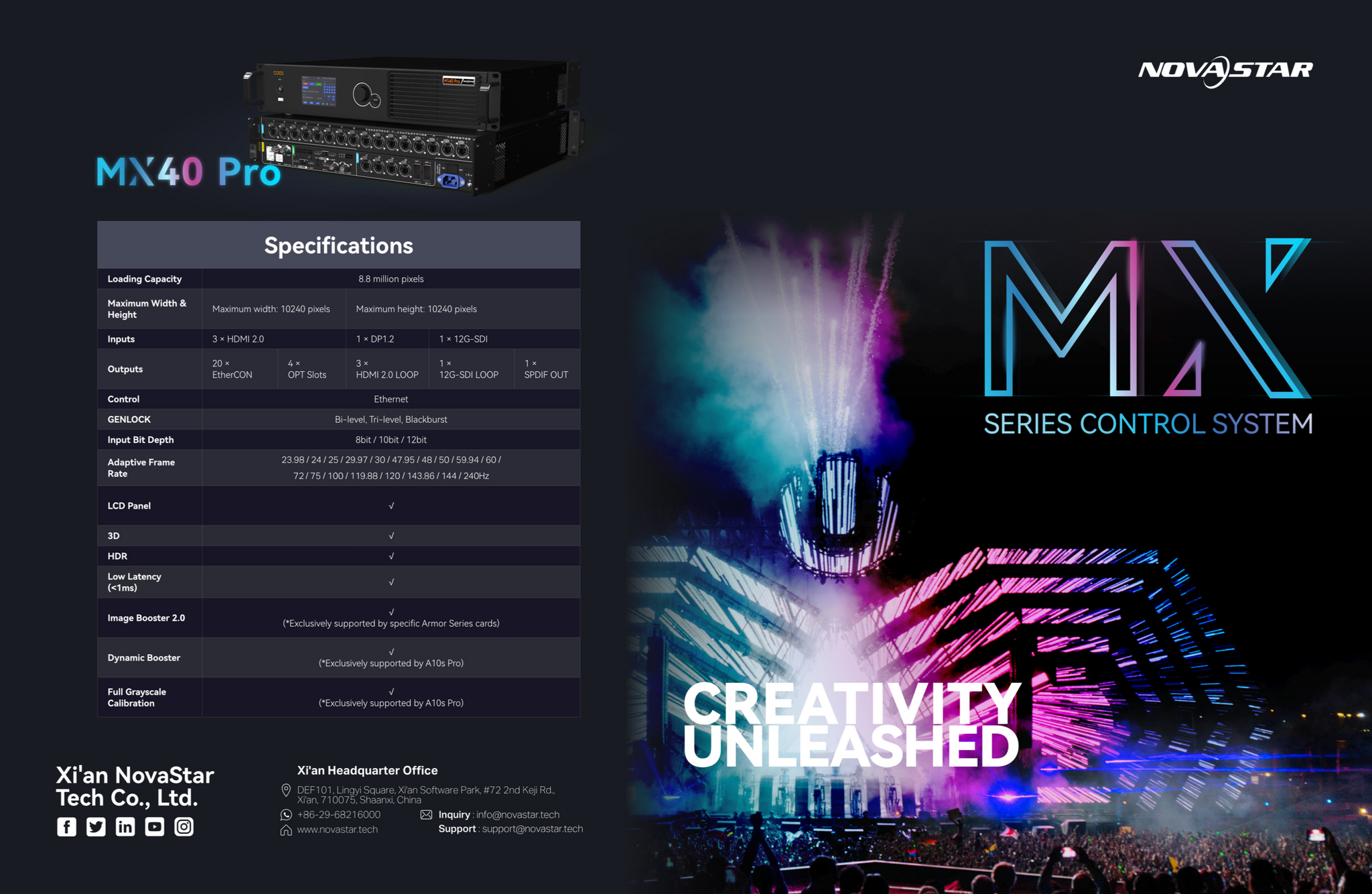

CLICK HERE FOR THE MX40 PRO BROCHURE
BUILT-IN SCALING (AUTO FIT CONTENT TO WALL): Yes (Supports 4 image scaling modes: custom, pixel to pixel, snap to canvas, and fill screen.)

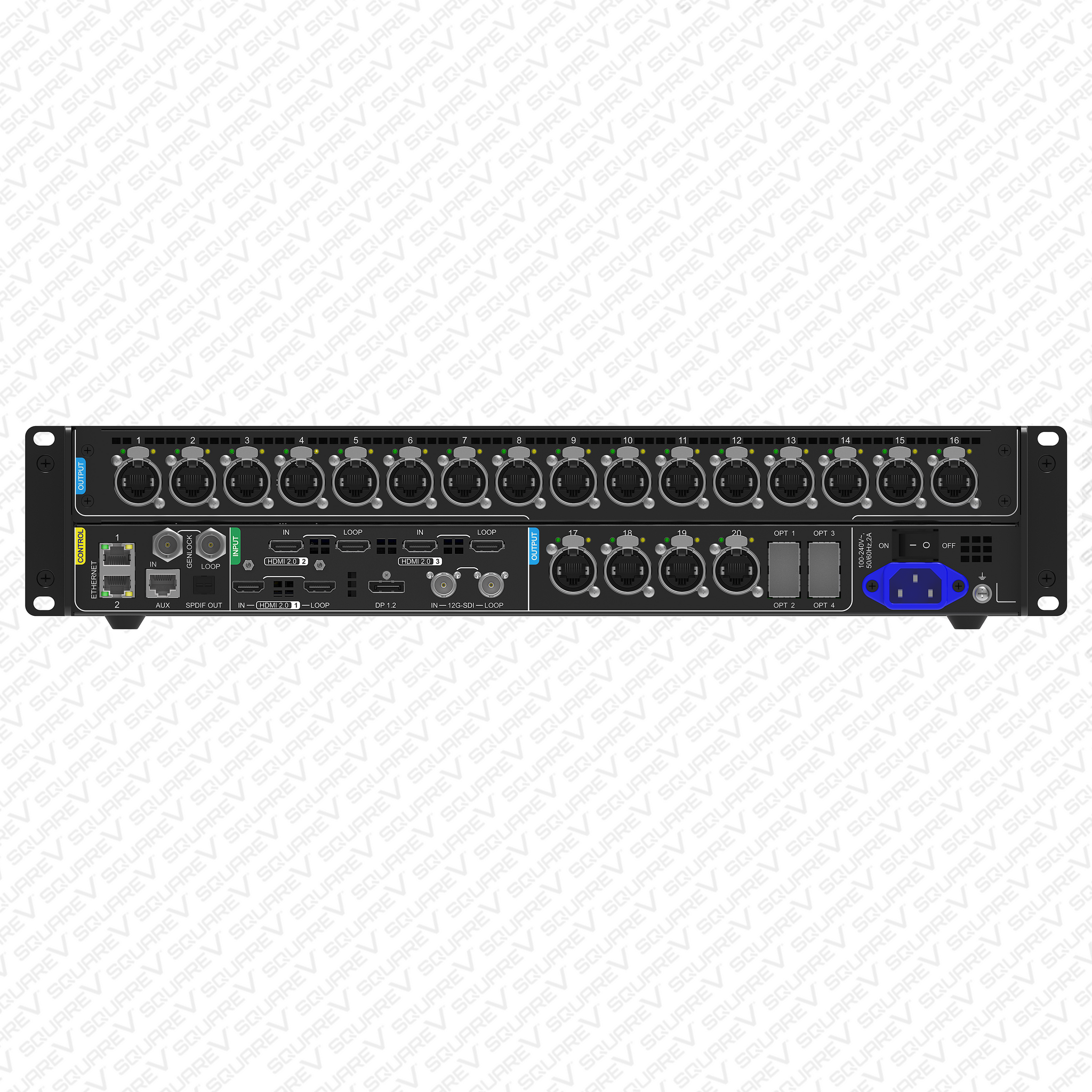

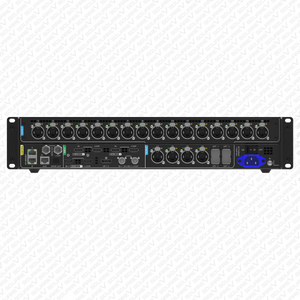

INPUTS: 5 - HDMI 2.0 (3x), DP 1.2 (1x), 12G-SDI (1x)
OUTPUTS: LED OUTPUTS - 20
GENLOCK: YES
IMAGE MOSAIC (MULT. PROCESSORS ON 1 WALL): YES
VIDEO LOOP: YES
BUILT IN FIBER SLOTS: YES (4: 2 primary, 2 backup)
WINDOWS/LAYERS: 4
3D: YES (Supports 3D Effect. Output capacity is cut in half when 3D is enabled)
CONTROL:
ETHERNET (2x ports)
LOADING CAPACITY:
MAX PIXELS PER LED OUTPUT: 650,000 pixels (8-bit), 480,000 pixels (10-bit), or 320,000 pixels (12-bit)
TOTAL PIXELS: 8.8 million pixels - for now. Hopefully Up to 10 million pixels with a future firmware update.
MAXIMUM INPUT RESOLUTION: 4096 x 2160 @ 60Hz
MAX OUTPUT WIDTH/HEIGHT: 10240 pixels x 10240 pixels (W x H or H x W)
