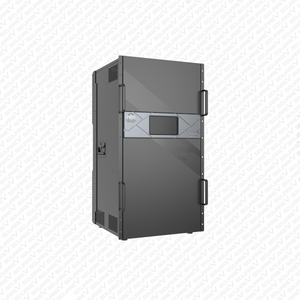

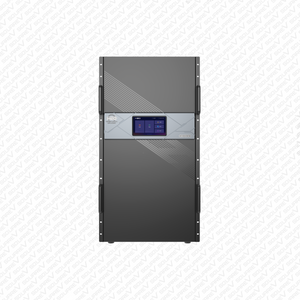

NovaStar H20 H Series Video Wall Splicer (All-In-One Splicer)
NovaStar H20 H Series Video Wall Splicer (All-In-One Splicer)
NovaStar H20 H Series Video Wall Splicer (All-In-One Splicer)

NovaStar H20 H Series Video Wall Splicer (All-In-One Splicer)

Brand: NovaStar

Regular price $10,029.00 On Sale

  • This product is temporarily out of stock. Please contact us for an ETA.

    Pricing shown above is MAP pricing before the international tariff/handling fee (added at checkout).





     Click the image above to see a NovaStar H Series overview video



    * The pricing shown is for the empty frame only. All input and output cards sold separately and can be added using the "ADD INPUT & OUTPUT CARDS" section below. Be sure to scroll back up and click on "ADD TO CART" after selecting the input and output cards you'd like and quantities.



    NOVASTAR H SERIES VIDEO SPLICER FOR NARROW PITCH DISPLAYS

    The H series are NovaStar’s new generation video wall splicers that feature excellent image quality and are designed especially for fine-pitch LED screens. The H series products can work as splicing processors that integrate both video processing and video control capabilities, or work as pure splicing processors. The whole unit adopts modular and plug-in design, and allows for flexible configuration and hot swapping of input and output cards. Thanks to the excellent features and stable performance, the H series products can be widely used in applications, such as energy and power, judicial departments and prisons, military command, water conservancy and hydrology, meteorologic earthquake prediction, enterprise management, metallurgy of steel, banking and finance, national defense, public security traffic management, exhibitions and presentations, production scheduling, radio and television, educational and scientific research, as well as stage rental applications.





    Configured to your specific application...

    EACH H20 UNIT COMES STANDARD WITH…

    • Front panel with screen
    • Two Power Supplies
    • Control Card
      • Power Switch
      • Genlock In/Loop
      • Ethernet Port for Control via Network
      • USB Port for Control via Software
      • RS232 Ports for COM





      • H20:  Up to 40 input cards and up to 20 output cards

          • Loading capacity = 260,000,000 pixels (up to 416,000,000 when using the 4x fiber only output card)
          • Max input channels = 160

      • Inputs cards available:
          • 4x DVI card
          • 4x HDMI card (2x HDMI 1.3 + 2x HDMI 1.4a)
          • 1x HDMI 2.0 + 1x DP 1.2 card (Only one connector can be used at a time)
          • 1x HDMI 2.0 card
          • 2x HDMI 2.0 card
          • 2x RJ45 Gigabit Ethernet card + 1x USB input
          • 4x 3G-SDI card
          • 1x 12G SDI IN + 1x 12G SDI Loop
          • Analog (VGA) card
          • 2x DP1.1 card
      • Output Cards:
          • Monitor output (MVR) card with 2x RJ45 Gigabit ethernet and 1x HDMI 1.3 monitor output
          • 16x RJ45 + 2x Fiber output card. 10,400,000 pixels loading capacity per card with a max width of 10,240 pixels and a max height of 10,240 pixels
          • 20x RJ45 output card.  13,000,000 pixels loading capacity per card with a max width of 10,752 pixels and a max height of 10,752 pixels
          • 4x Fiber output card.  20,800,000 pixels loading capacity per card with a max width of 16,384 pixels and a max height of 16,384 pixels



      NovaStar H20 Spec Sheet

      NovaStar H Series Brochure

      NovaStar H Series User Manual





      • Free ground shipping (excluding H Series frames) to anywhere in the continental U.S.A.
      • If the product is in stock, then we have it in our Nashville, TN warehouse. For products temporarily out of stock, please contact us at: info@squarevled.com for an ETA.
      • Expedited shipping available. Please contact us at: info@squarevled.com or 615-224-8968 for rates.
      • Orders usually leave same-day if you place your order by 2:00pm CST Monday - Friday.
